Descriptions Parameter
Motor 6
Symmetrical Motor 1950mm
Spreaded Size(No Rotors) 2050×1610×780mm
Folded Size 1050×620×780mm
Model 9626
KV 100kv
Max Pulling Force 29kg
Max Power 3600W
Max Current 150A
Voltage 51.8V(standard)
Pulse Width 1050us-1950us
Material Carbon Fiber
Size 36120
Tank Volume 30L
Nozzle Model XR110015VS
Nozzle Quantity 8
Spraying Flow Rate(Max) 10L/min
Spraying Width（Depending On Height） 6-8m
Atomized Particle 130-250um
Max Pressure of Pump 0.8Mpa
Max Power of Pump 35W
Whole Unit Weight（Without Battery） 27.8kg
Max Take off Weight 92kg
Hovering Accuracy Horizontal：±0.8m Vertical：0.5m
Fullload Hovering Time 8min
No load Hovering Time 22min
Max Flight Speed 10m/s
Recommended Flight Temperature 0-50℃
Efficiency 30acres/h
Frequency 2.400-2.483 GHz
Effective Distance（Without Interference） 3km
Rated Voltage 3.7V
Battery Capacity 10000mAh
Weight 1.05kg
Supported Language Chinese / English / Others
Input 100-240V 50/60HZ
Output 3000W
Channels Multi-Channel
Size 294×282×139mm
Weight 6kg
Voltage 53.2V（Standard）
Volume 14S 28000mAh
Size 290x235x138mm
Weight 9.2kg/pc
Battery
Foldable Propellers
Spraying System
Flight Parameters
Remote Controller
Battery Charger

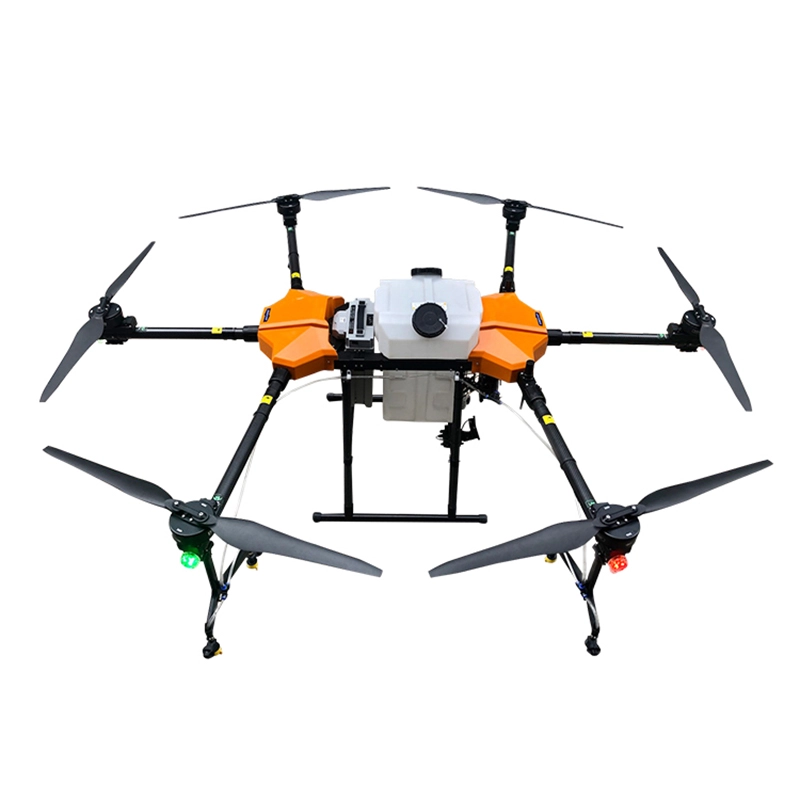

DF-C30（30L）
Aircraft Frame
Motor
Electrical Control
